Self-Aligning Ball Bearing

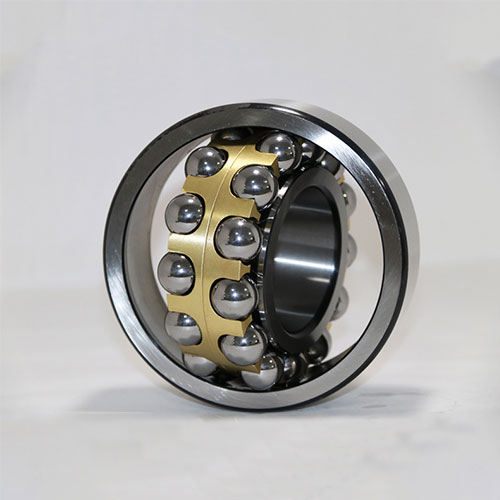

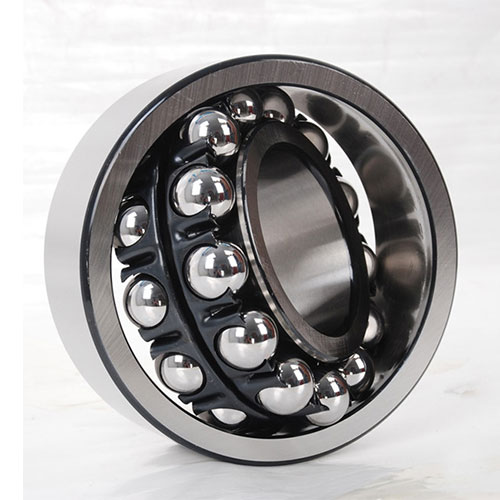

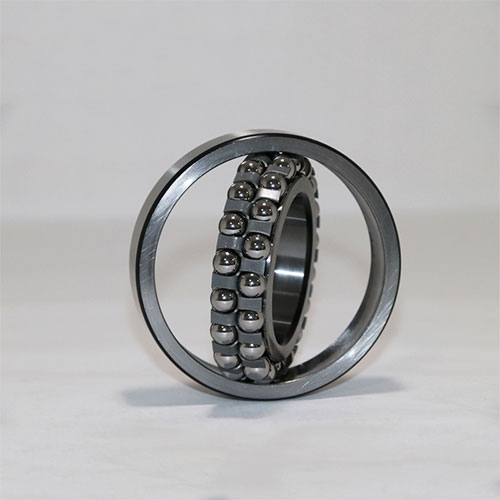

Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Self-aligning ball bearings are available with either a cylindrical or tapered bore. Bearings with a tapered bore can be mounted directly on a shaft or on an adapter or withdrawal sleeve.

Self-Aligning Double Row Ball Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection.  The concave raceway of the outer ring in combination with two rows of balls operate over a wide range of contact angles.  Furthermore it aligns itself correctly with the shaft and assembly without causing undue stress on the rest of the bearing assembly.
