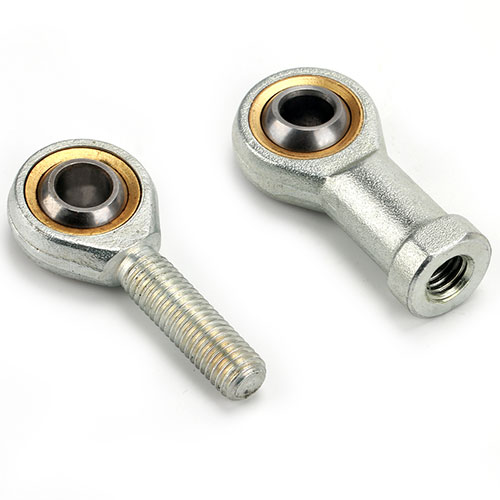

Female thread fish eye rod end bearing M8*1.25 ball joint bearing SI8T/K
| type | Dimensions(mm) | a | weight (g ) | |||||||||||
| d | d3 | d2 | d5 | S | B | L5 | C1 | h1 | L3 | d4 | L4 | |||
| PHSA5 | 5 | M5x0.8 | 18 | 12.5 | 10 | 8 | 4 | 6 | 27 | 10 | 9 | 36 | 13 | 25 |
| PHSA6 | 6 | M6x1 | 20 | 13 | 11 | 9 | 5 | 6.75 | 30 | 12 | 10 | 45 | 13 | 27 |
| pHSA8 | 8 | M8x1.25 | 24 | 16 | 14 | 12 | 5 | 9 | 36 | 16 | 12.5 | 48 | 13 | 46 |
| PHSA10 | 10 | M10x1.5 | 28 | 19 | 17 | 14 | 6.5 | 10.5 | 43 | 20 | 15 | 57 | 13 | 76 |
| PHSA12 | 12 | M12x1.75 | 32 | 22 | 19 | 16 | 6.5 | 12 | 50 | 22 | 17.5 | 66 | 13 | 115 |
| PHSA14 | 14 | M14x2 | 36 | 25 | 55 | 19 | 8 | 13.5 | 57 | 25 | 20 | 75 | 13 | 170 |
| PHSA16 | 16 | M16x2 | 42 | 27 | 25 | 21 | 8 | 15 | 64 | 28 | 22 | 84 | 13 | 230 |
| PHSA18 | 18 | M18x1.5 | 46 | 31 | 27 | 23 | 10 | 16.5 | 71 | 32 | 25 | 94 | 13 | 320 |
| PHSA20 | 20 | M20x1.5 | 50 | 34 | 30 | 25 | 10 | 18 | 77 | 33 | 27.5 | 102 | 13 | 420 |
| PHSA22 | 22 | M22x1.5 | 54 | 37 | 32 | 28 | 12 | 20 | 84 | 37 | 30 | 111 | 13 | 540 |
| PHSA25 | 25 | M24x2 | 60 | 42 | 30 | 31 | 12 | 22 | 94 | 42 | 33.5 | 124 | 13 | 750 |
| PHSA28 | 28 | M27x2 | 66 | 46 | 41 | 35 | 14 | 24 | 103 | 41 | 37 | 136 | 13 | 820 |
| PHSA30 | 30 | M30x2 | 70 | 50 | 41 | 37 | 15 | 25 | 110 | 51 | 40 | 145 | 13 | 1300 |
| type | Dimensions(mm) | a | weight(g ) | |||||||
| d | d3 | d2 | B | C1 | h | L1 | L2 | |||
| POSA5 | 5 | M5x0.8 | 18 | 8 | 6 | 33 | 19 | 42 | 13 | 20 |
| POSA6 | 6 | M6x1 | 20 | 9 | 6.75 | 36 | 22 | 46 | 13 | 21 |
| POSA8 | 8 | M8x1.25 | 24 | 12 | 9 | 42 | 25 | 54 | 13 | 34 |
| POSA10 | 10 | M10x1.5 | 28 | 14 | 10.5 | 48 | 29 | 62 | 13 | 58 |
| POSA12 | 12 | M12x1.75 | 32 | 16 | 12 | 54 | 33 | 70 | 13 | 92 |
| POSA14 | 14 | M14x2 | 36 | 19 | 13.5 | 60 | 26 | 77 | 13 | 153 |
| POSA16 | 16 | M16x2 | 42 | 21 | 15 | 66 | 40 | 86 | 13 | 205 |
| POSA18 | 18 | M18x1.5 | 46 | 23 | 16.5 | 72 | 44 | 95 | 13 | 280 |
| POSA20 | 20 | M20x1.5 | 50 | 25 | 18 | 78 | 47 | 103 | 13 | 370 |
| POSA22 | 22 | M22x1.5 | 54 | 28 | 20 | 84 | 51 | 111 | 13 | 475 |
| POSA25 | 25 | M24x2 | 60 | 31 | 22 | 94 | 57 | 124 | 13 | 650 |
| POSA28 | 28 | M27x2 | 66 | 35 | 24 | 103 | 62 | 136 | 13 | 800 |
| POSA30 | 30 | M30x2 | 70 | 37 | 25 | 110 | 66 | 145 | 13 | 1070 |
