Thrust roller bearing

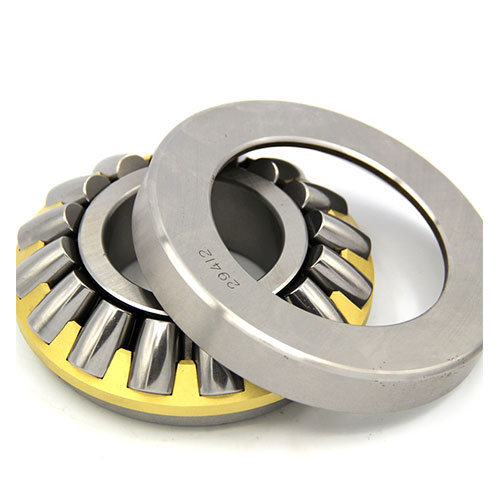

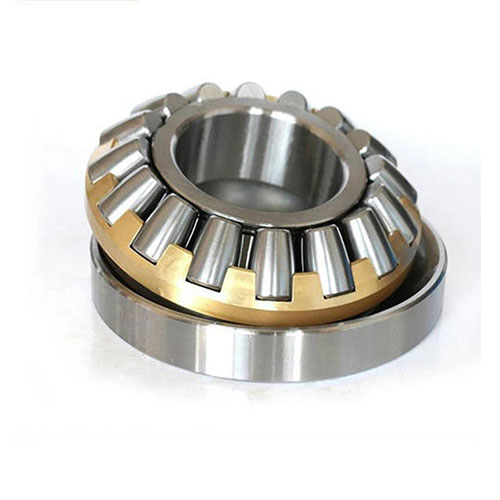

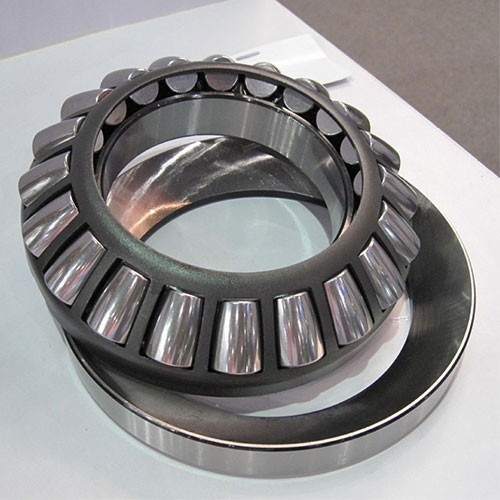

29412 Thrust Roller Bearing

Material:chrome steel Gcr15
Samples: Available
Service:OEM
Precision Rating:P0 P6
Product description: 29412 29412M Thrust Roller Bearing From China Bearing Manufacturer
INQUIRY EMAIL

Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact,
to limit the shaft (or shell) of the axial displacement in one direction,
it can be used as single-axis to the position.
But its carrying capacity is far greater than the thrust ball bearings.

Roller rolling, because the roller ends of lines at different speeds,
the roller raceway in the ring sliding inevitably arise,
so such bearing speed limit lower than the thrust ball bearings,

usually only for low speed applications.

Model	Dimension (mm)	Weight (KG)	Model	Dimension(mm)	Weight (KG)
81120	100×135×25	1	81211	55×90×25	0.708
81122	110×145×25	1.1	81212	60×95×26	0.64
81124	120×155×25	1.23	81213	65×100×27	0.874
81126	130×170×30	1.7	81214	70×105×27	0.77
81128	140×180×31	1.95	81215	75×110×27	0.979
81130	150×190×31	2.05	81216	80×115×28	0.9
81132	160×200×31	2.2	81217	85×125×31	1.44
81134	170×215×34	2.95	81218	90×135×35	1.75
81136	180×225×34	3.05	81220	100×150×38	2.58
81140	200×250×37	3.74	81222	110×160×38	-
81140/YA	200×250×37	4.28	81222M	110×160×38	2.8
81188	440×540×80	41.5	81224	120×170×39	2.7
811/530	530×640×85	55.5	81224M	120×170×39	2.94
811/850	850×1000×120	177.15	81226	130×190×45	4.29
81206	30×52×16	0.12	81228	140×200×46	4.55
81207	35×62×18	0.2	81230	150×215×50	5.9
81208	40×68×19	0.27	81232EA	160×225×51	-
81209	45×73×20	0.3	81232	160×225×51	6.2
81210	50×78×22	0.43	81234	170×240×55	7.7
81240	200×280×62	13.7	81236	180×250×56	8.25

Bearing Number	Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)	Mass(Kg)
	d	D	T	rs min	Ca	Coa	Oil	(Approx.)
29412	60	130	42	1.5	283	805	2,600	2.78
29413	65	140	45	2	330	945	2,400	3.44
29414	70	150	48	2	365	1040	2,200	4.19
29415	75	160	51	2	415	1,190	2,100	5.07
29416	80	170	54	2.1	460	1380	1,900	6.09
